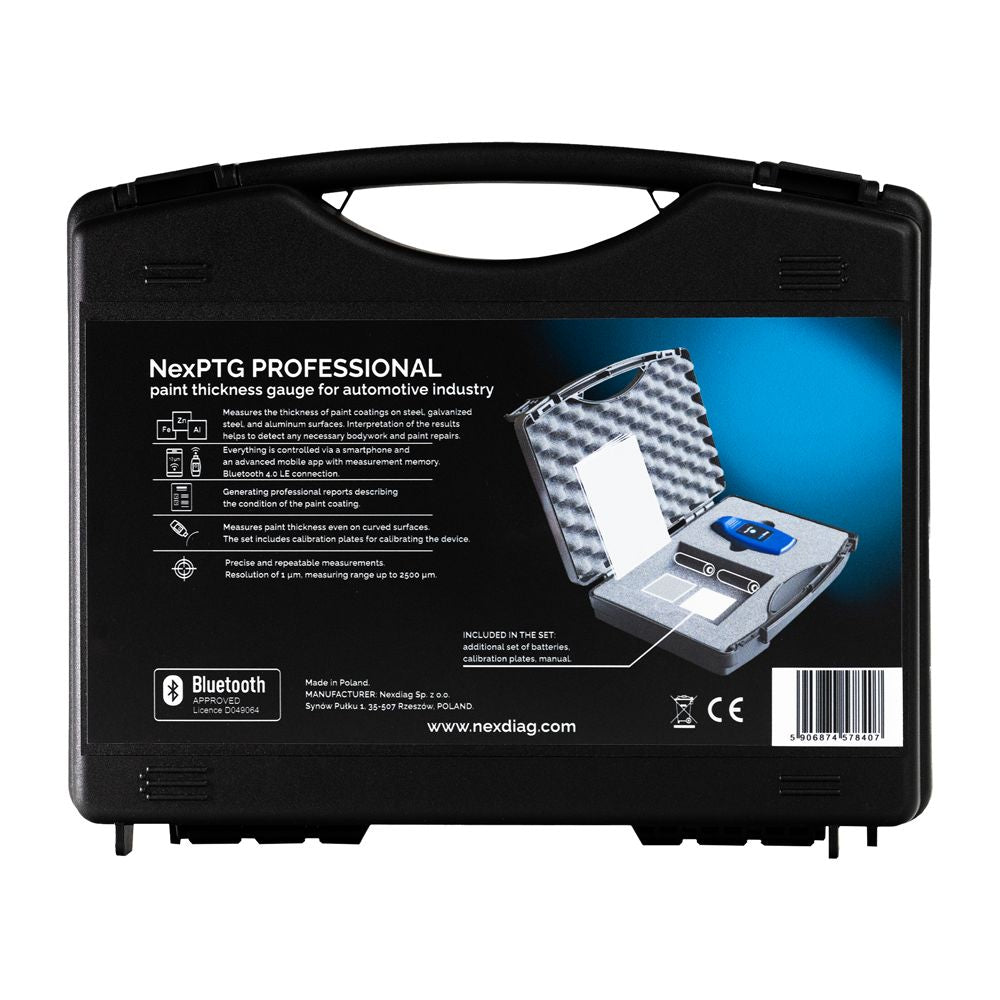

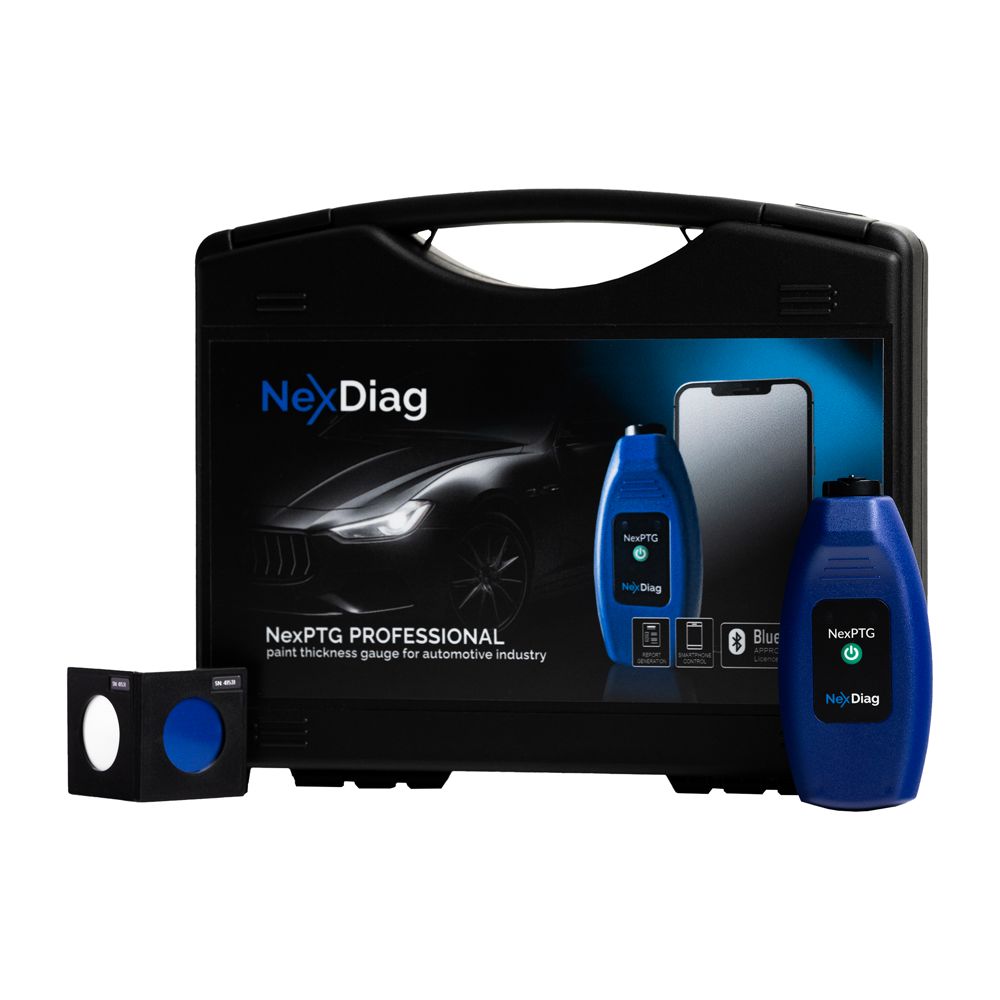

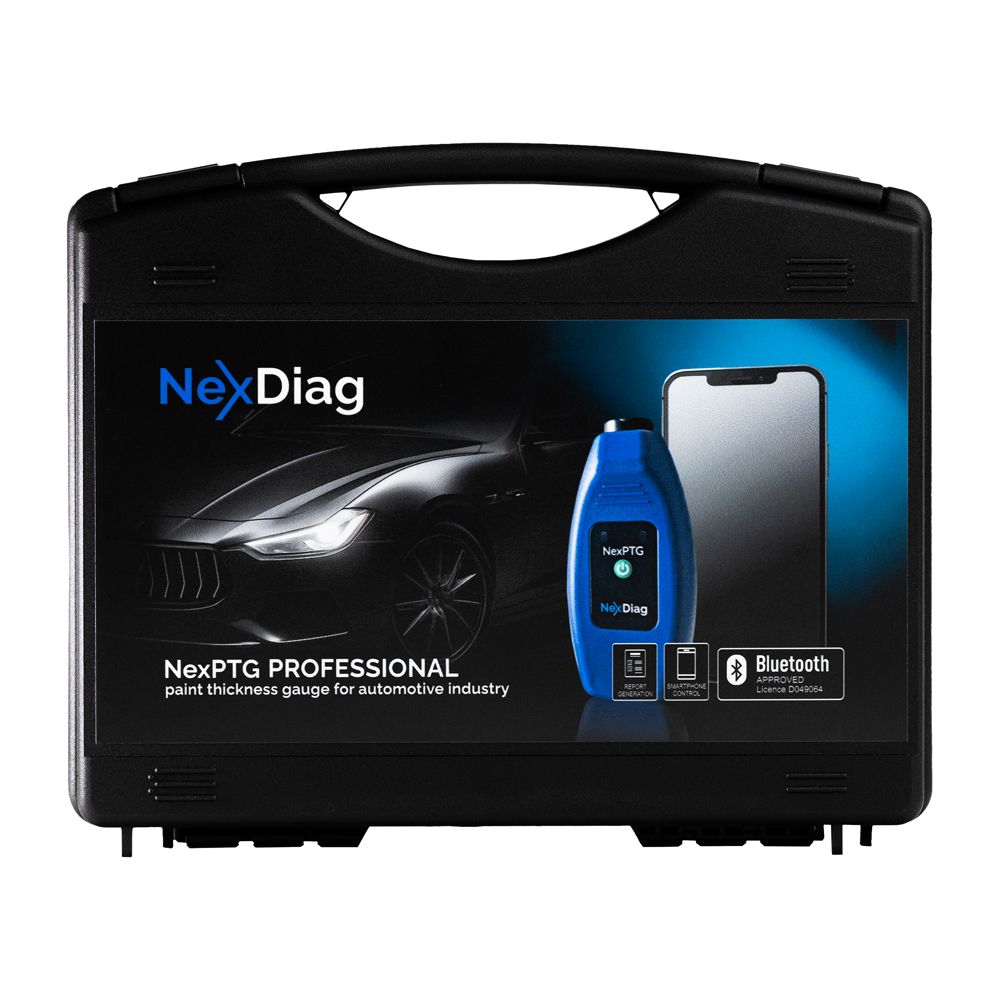

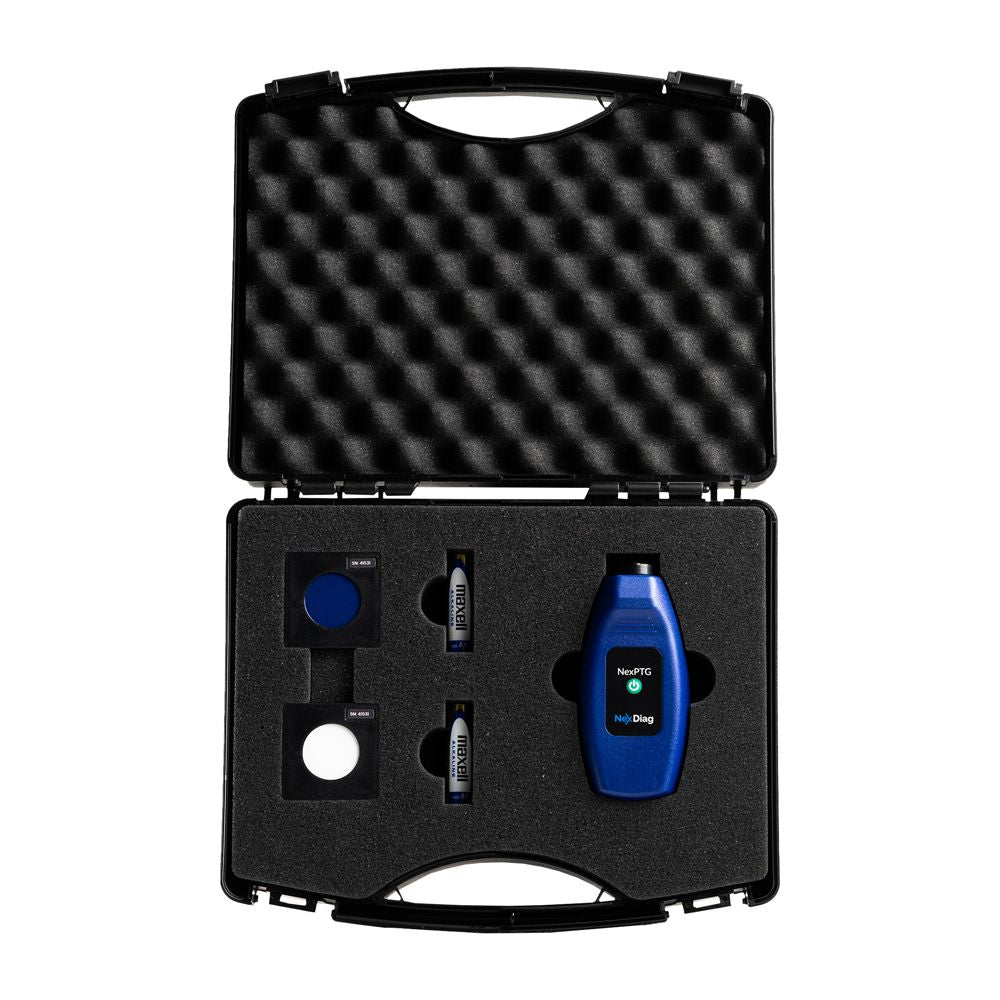

NexDiag Professional Paint Depth Gauge

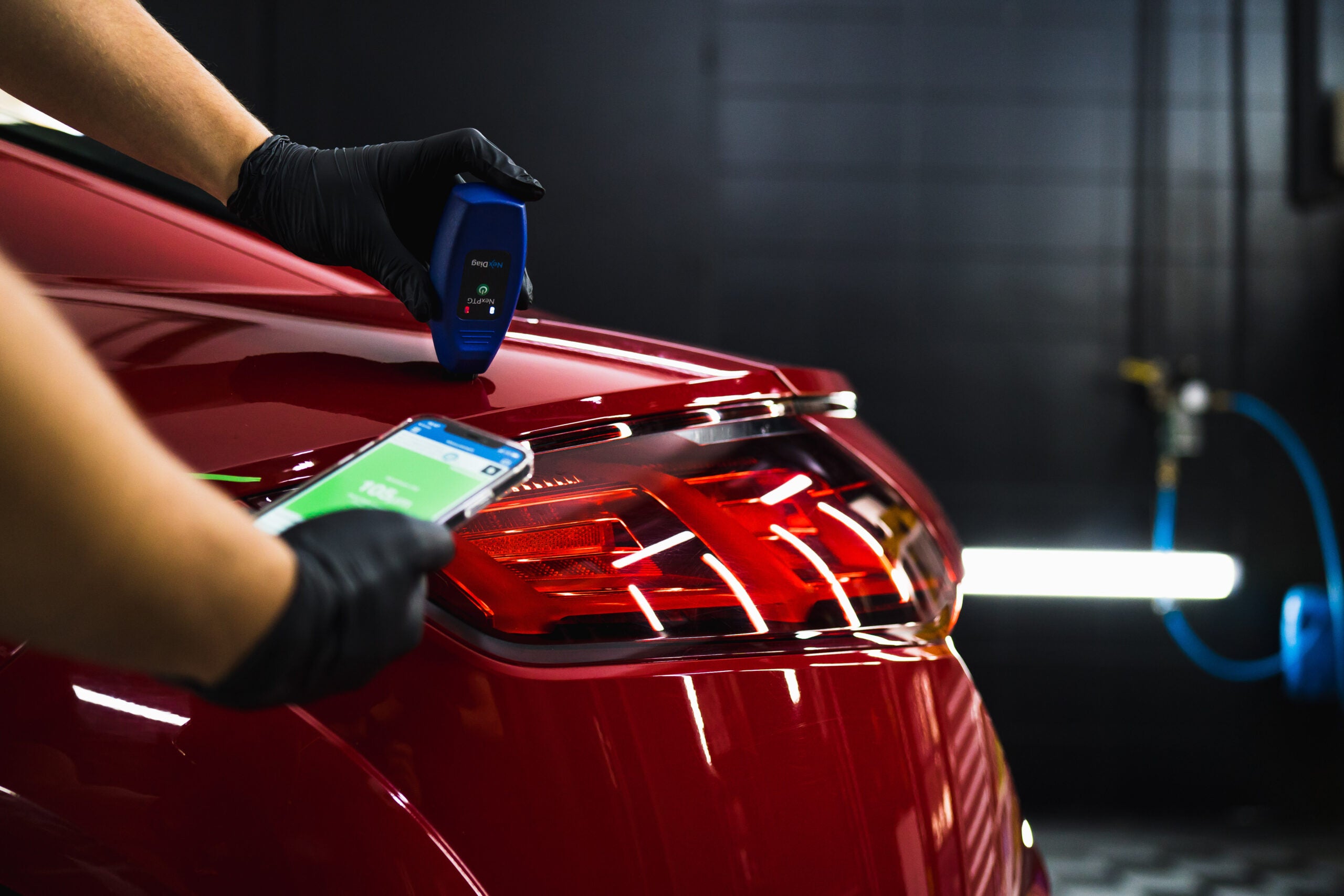

An advanced version of the NexPTG lacquer & paint thickness gauge, which enables fast, accurate and intuitive vehicle testing. The Professional version has a movable head allowing for precise measurements on concave and convex elements.

Suggested measurement points with creation and export of measurement history.

• Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]
• Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
• Range of measurement: 0 – 2500 μm (0 – 98.43 mils)
• Type of probe / End of probe: movable/spherical
• Possible measurement on curvatures (profiled probe housing)
• Resolution of measurement: 1 μm (0.04 mils)
• Measurement memory: up to 4000 items
• Wireless transmission: Bluetooth 4.0 LE
• SAPL Extended: lacquer coating analysis system
• Suggested measurement points
• Creation and export of measurement history
• Creation and export of reports
• API communication
• Supported systems: iOS / Android – iOS 8 or Later, Android 4.3 or Later
